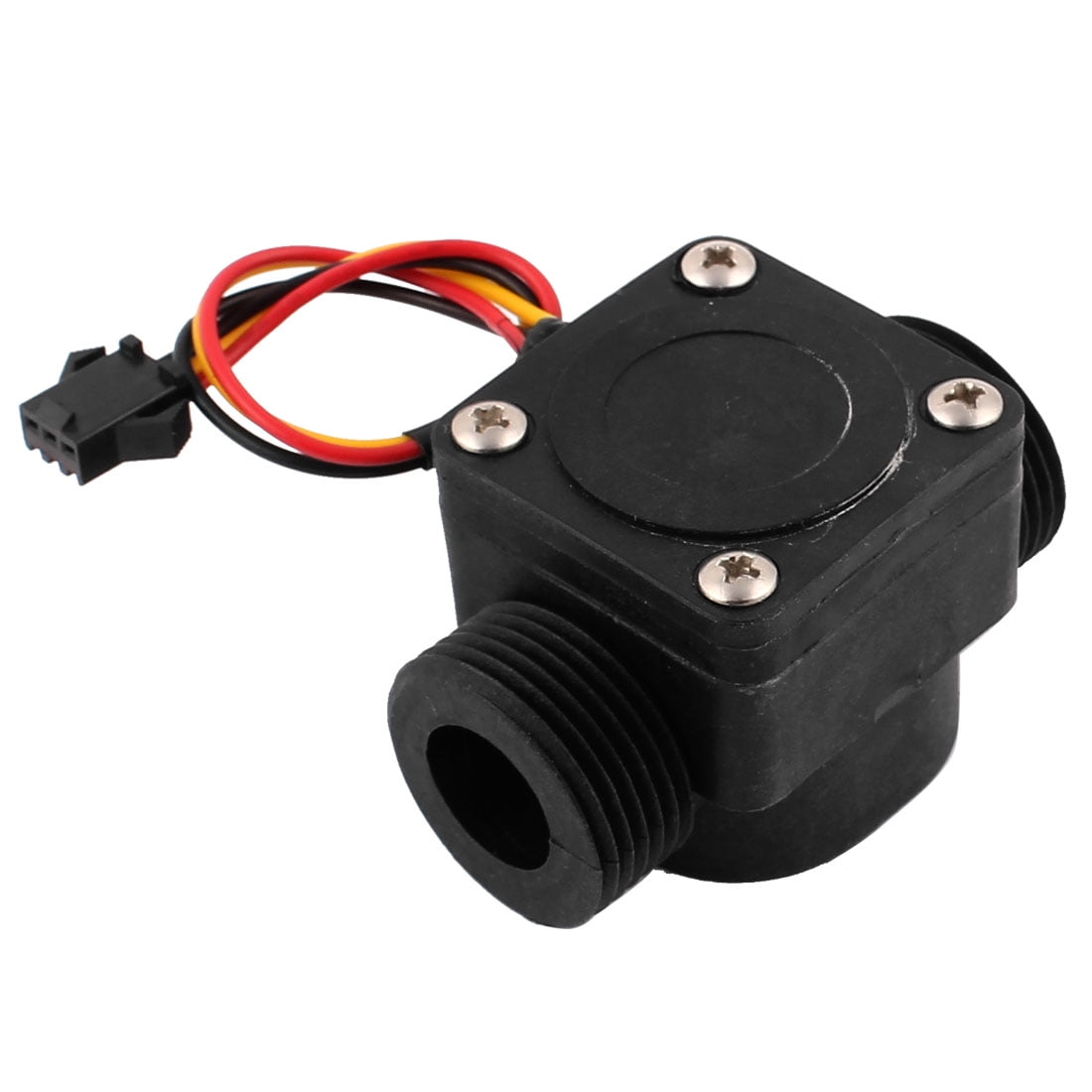

The water flow sensor consists of a plastic valve body, a water rotor and a hall-effect sensor. When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This type of sensor can be found on different diameters, water pressure (MPa.. For more details and guides related to using Hall-effect sensors in flow meter applications, see Table 2 and Table 3 . Table 2. Alternative Device Recommendation. Device Characteristics Design Considerations TMAG5231 Low-power, low-voltage (1.65 V to 5.5 V) omnipolar Hall-effect switch. Available in SOT-23
